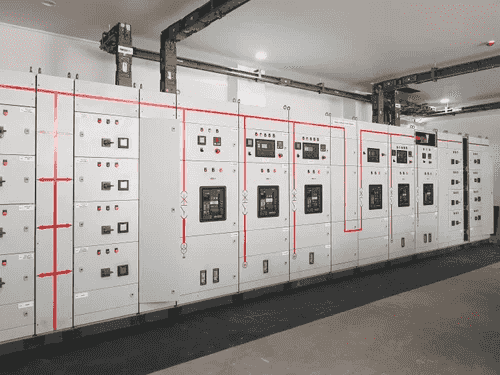

India Electricals DG Synchronizing Panels are designed to supply power from Diesel Generator (DG) sets in the absence of electrical board (EB) power. These panels control DG set operations and manage the switching of breakers. When the main power source fails, the DG set is automatically started. The panel also synchronizes multiple DG sets for auto load sharing and load-dependent start/stop functionality.
Upon the resumption of the main power source, the system automatically operates the necessary breakers and switches off the DG set, ensuring seamless power management.
DG Synchronizing Panels automate diesel generator synchronization with mains or other generators using advanced relays and controllers. They ensure frequency, phase, and voltage alignment, enabling smooth load transfer and parallel operation, thus averting disruptions and equipment damage.
DG Synchronizing Panels facilitate load sharing and management among parallel generators. They monitor and control generator output to evenly distribute loads, optimizing performance and reliability. These panels offer flexible configuration to accommodate changing load demands and operational conditions.
DG Synchronizing Panels ensure generator, equipment, and personnel safety. With features like overcurrent, overvoltage, underfrequency, and reverse power protection, along with synchronizing check relays and alarms, they prevent damage and promptly address synchronization issues, ensuring reliable power distribution.
We use high-quality MS CRCA sheet steel with thicknesses of 14 gauge 2mm and 16 gauge 1.66mm for panel fabrication. Our panels are supported by robust 75x40 or 100x50 base channels. We offer panels with protection classes of IP 42, IP 52, IP 55, and IP 65, tailored to meet specific client requirements.
Our sheet metal is treated to prevent corrosion and coated with epoxy-based powder to 80-100 microns, using a seven-tank pretreatment process. Panels are then baked at up to 200°C for durability and a high-quality finish. Painting options include oven-drying or powder-coating based on client specifications
Our Busbar System is engineered to leverage the thermal and mechanical properties of the busbar material, effectively resisting short-circuit currents while promoting efficient heat dissipation to maintain cooler temperatures. For added safety and stability, the busbars are supported by SMC insulators, and all joints are secured with specified torque and sealed with a paint mark for verification.
We adhere to the latest IS standards for engineering and wiring in our panels. During assembly, we carefully consider the panel layout to ensure ease of access for operation and maintenance. Each component is clearly labeled to facilitate quick and accurate identification, enhancing both functionality and serviceability.
