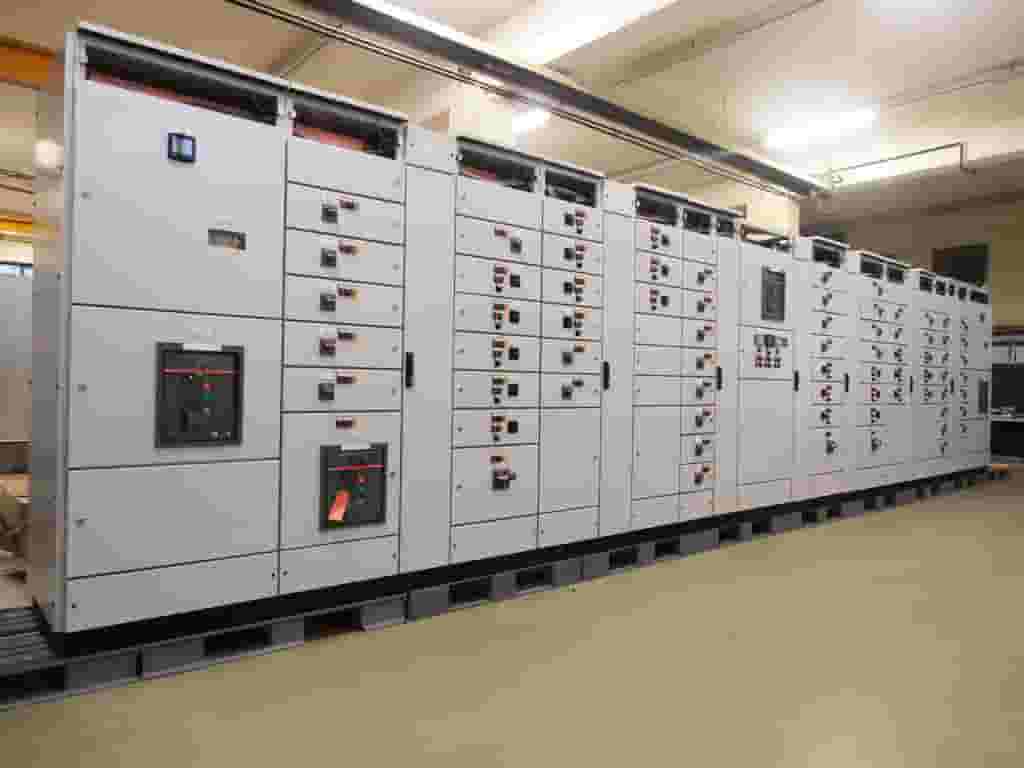

India Electricals Power Control Centres are designed to meet the IEC 61439 standards and are used for the distribution and control of various power sources in industrial settings. Typically installed near the power source, PCCs handle high fault levels, designed to withstand 50kA / 65kA / 80 KA/ 100 KA for 1 second. The busbar system is engineered to meet both fault levels and temperature requirements, operating 40°C above ambient.
Our PCCs provide ample space for cable termination and include a range of protective features, such as short-circuit, overload, earth fault, and under-voltage protection, ensuring both source and equipment are safeguarded. Additionally, our PCCs are integration-ready with Intelligent Building Management Systems or Energy Management Systems.
PCCs serve as the primary distribution point for electrical power within a facility, incorporating circuit breakers, switches, and other control devices to regulate and distribute power to various loads. They provide a centralized location for monitoring and controlling the flow of electricity, ensuring efficient and reliable operation of electrical systems.
PCCs are designed with a modular structure, allowing for easy customization to accommodate specific power distribution requirements. This flexibility enables the addition or removal of components such as circuit breakers, meters, and relays, adapting to changes in load demand or system configuration.
PCCs are equipped with comprehensive safety features, including overcurrent protection, short-circuit protection, and ground fault protection, to safeguard personnel and equipment from electrical hazards. They also incorporate measures such as interlocks, alarms, and emergency shutdown systems to mitigate risks and ensure compliance with safety standards.
We use high-quality MS CRCA sheet steel with thicknesses of 14 gauge 2mm and 16 gauge 1.66mm for panel fabrication. Our panels are supported by robust 75x40 or 100x50 base channels. We offer panels with protection classes of IP 42, IP 52, IP 55, and IP 65, tailored to meet specific client requirements.
Our sheet metal is treated to prevent corrosion and coated with epoxy-based powder to 80-100 microns, using a seven-tank pretreatment process. Panels are then baked at up to 200°C for durability and a high-quality finish. Painting options include oven-drying or powder-coating based on client specifications
Our Busbar System is engineered to leverage the thermal and mechanical properties of the busbar material, effectively resisting short-circuit currents while promoting efficient heat dissipation to maintain cooler temperatures. For added safety and stability, the busbars are supported by SMC insulators, and all joints are secured with specified torque and sealed with a paint mark for verification.
We adhere to the latest IS standards for engineering and wiring in our panels. During assembly, we carefully consider the panel layout to ensure ease of access for operation and maintenance. Each component is clearly labeled to facilitate quick and accurate identification, enhancing both functionality and serviceability.
