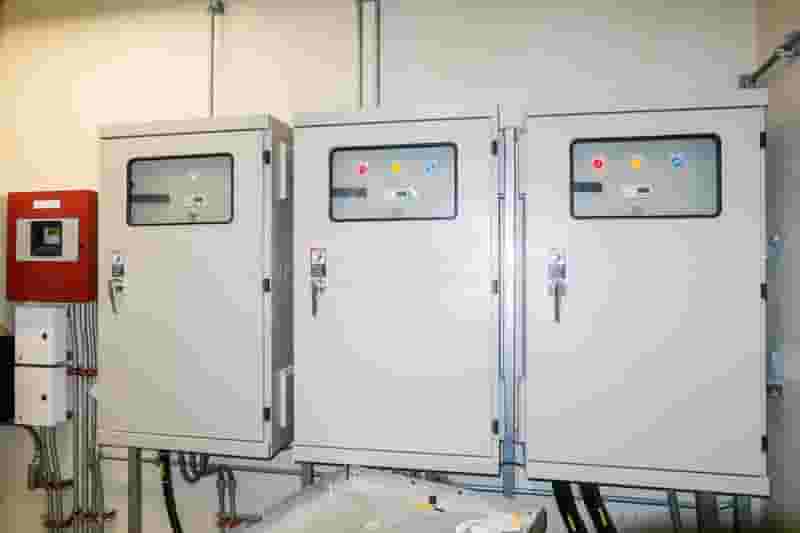

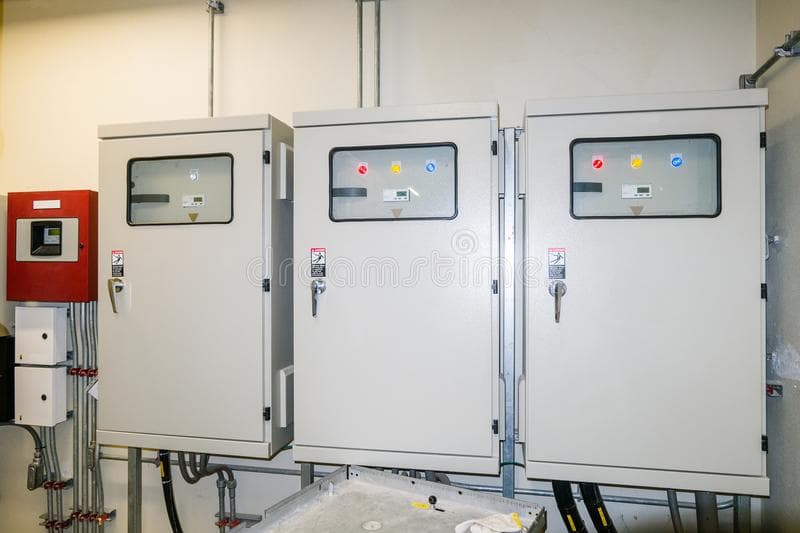

Outdoor Feeder Pillars are designed for low voltage electrical distribution applications. These panels are both dust-proof and water-proof, making them ideal for outdoor use in housing, commercial, and light industrial settings. They offer a safe and flexible solution with individual monitoring and protection, ensuring efficient management of the low voltage electrical distribution network.
Outdoor feeder pillars are built with robust equipped with weatherproof seals to endure outdoor elements like rain, snow, UV rays, and extreme temperatures, ensuring the safety and durability of enclosed electrical equipment.
Feeder pillars offer modular designs for easy customization, accommodating diverse electrical needs with options for circuit breakers, fuses, busbars, and terminals. This flexibility allows tailored configurations for specific applications, enhancing adaptability in electrical distribution systems.
Feeder pillars outdoors feature security measures like lockable doors, tamper-resistant fasteners, and insulation barriers to thwart unauthorized access and electrical hazards. Ventilation systems are also employed to cool down equipment and prevent overheating.
We use high-quality MS CRCA sheet steel with thicknesses of 14 gauge 2mm and 16 gauge 1.66mm for panel fabrication. Our panels are supported by robust 75x40 or 100x50 base channels. We offer panels with protection classes of IP 42, IP 52, IP 55, and IP 65, tailored to meet specific client requirements.
Our sheet metal is treated to prevent corrosion and coated with epoxy-based powder to 80-100 microns, using a seven-tank pretreatment process. Panels are then baked at up to 200°C for durability and a high-quality finish. Painting options include oven-drying or powder-coating based on client specifications
Our Busbar System is engineered to leverage the thermal and mechanical properties of the busbar material, effectively resisting short-circuit currents while promoting efficient heat dissipation to maintain cooler temperatures. For added safety and stability, the busbars are supported by SMC insulators, and all joints are secured with specified torque and sealed with a paint mark for verification.
We adhere to the latest IS standards for engineering and wiring in our panels. During assembly, we carefully consider the panel layout to ensure ease of access for operation and maintenance. Each component is clearly labeled to facilitate quick and accurate identification, enhancing both functionality and serviceability.
